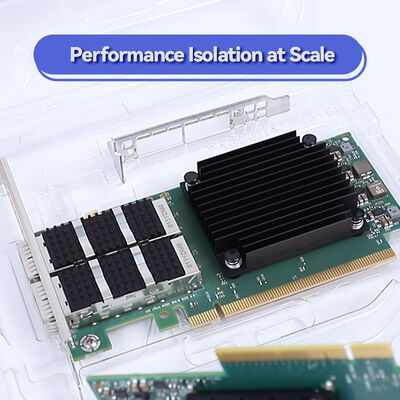

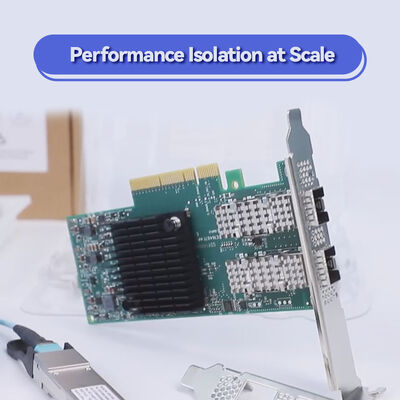

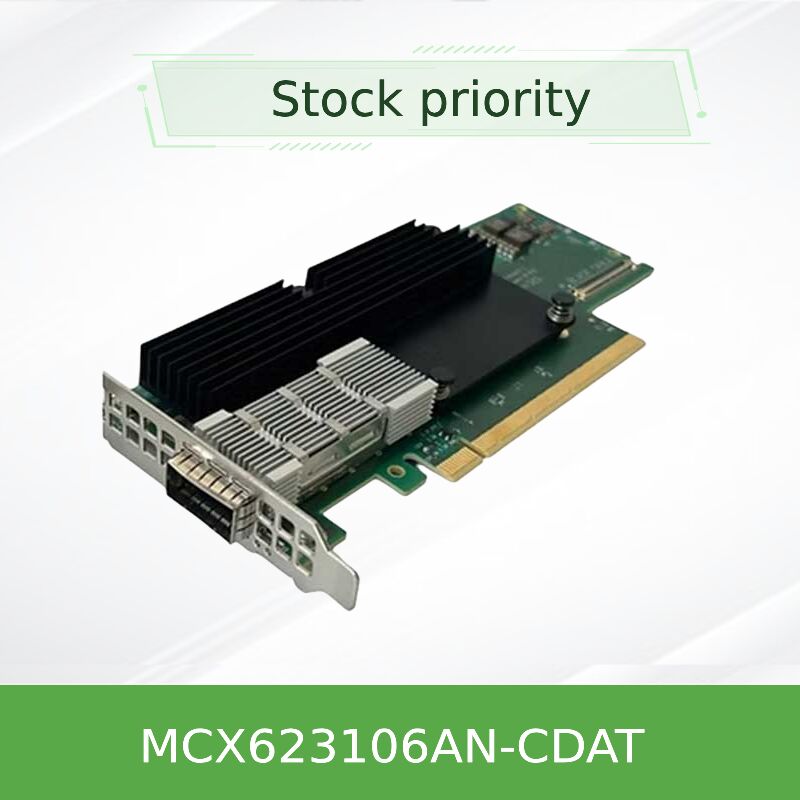

MCX623106AN-CDAT ConnectX-6 Lx 25G Dual-Port SmartNIC PCIe
รายละเอียดสินค้า:
| ชื่อแบรนด์: | Mellanox |
| หมายเลขรุ่น: | MCX623106AN-CDAT |
| เอกสาร: | connectx-6-lx-en-card.pdf |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เวลาการส่งมอบ: | ขึ้นอยู่กับสินค้าคงคลัง |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | จัดหาโดย Project/Batch |
|
ข้อมูลรายละเอียด |
|||
| สถานะผลิตภัณฑ์: | คลังสินค้า | เงื่อนไข: | ใหม่และเป็นต้นฉบับ |
|---|---|---|---|
| เวลารับประกัน: | 1 ปี | เทคโนโลยี: | อีเทอร์เน็ต |
| อินเตอร์เฟสเครือข่าย: | สองเลน Serdes ที่รองรับ 25GB/s ต่อเลนสำหรับการกำหนดค่าพอร์ตต่างๆ: -2X 10/25 GBE -1X 50GBE | ความเร็ว: | 25Gbps |
| อินเทอร์เฟซ: | QSFP56 | อัตราการเชื่อมโยง: | 16.0 GT/S |
| เน้น: | Nvidia ConnectX-6 Lx SmartNIC,25G dual-port network card,PCIe SmartNIC with warranty |
||
รายละเอียดสินค้า
NVIDIA ConnectX-6 Lx 25G Dual-Port SmartNIC
MCX623106AN-CDAT | PCIe Low Profile 25/50GbE Ethernet Adapter with RoCE and SDN Acceleration
Deliver scalable, high-performance networking for modern cloud and enterprise data centers. The ConnectX-6 Lx MCX623106AN-CDAT features PCIe low profile form factor, dual-port 10/25GbE or single-port 50GbE connectivity, PCIe Gen4 x8 host interface, Zero-Touch RoCE, and ASAP2 SDN acceleration -- designed to reduce CPU overhead and accelerate virtualized workloads.
Note: MCX623106AN-CDAT is a non-crypto variant (without IPsec inline acceleration). For IPsec security offload, please consider crypto-enabled models such as MCX631102AN-ADAT.
Product Overview
NVIDIA ConnectX-6 Lx Ethernet SmartNICs bring breakthrough efficiency to 25GbE deployments. The model MCX623106AN-CDAT is a PCIe low profile adapter equipped with advanced ASAP2 acceleration, hardware root-of-trust, and full support for RoCE (RDMA over Converged Ethernet). This non-crypto variant is ideal for environments where encryption is handled by software or external appliances, offering cost-effective high-performance networking. Whether you are virtualizing network functions, building high-frequency trading platforms, or deploying NVMe over Fabrics, this SmartNIC offloads the data plane and ensures line-rate performance at up to 75 million packets per second (Mpps).
Key Features
- High Throughput and Connectivity: Dual-port 10/25GbE or single-port 50GbE; total bandwidth up to 50Gb/s.
- PCIe Low Profile Form Factor: Standard PCIe bracket, compatible with most enterprise servers.
- PCIe Gen4 and Gen3 x8: Host interface compatible with PCIe 4.0 (8 lanes) and backward compatible to Gen3.
- ASAP2 SDN Acceleration: Offloads overlay encapsulations (VXLAN, GENEVE, NVGRE) and stateful connection tracking (L4 firewall).
- Zero-Touch RoCE (ZTR): Seamless RDMA deployment without PFC or ECN configuration; resilient and scalable.
- Hardware Root of Trust: Secure boot, RSA-authenticated firmware updates, device-unique key for clone protection.
- Virtualization Ready: SR-IOV, VirtIO acceleration, overlay offloads for containerized and virtualized environments.
- Non-Crypto Design: Optimized for software-based encryption or environments where IPsec offload is not required.
Technology Deep Dive
The ConnectX-6 Lx integrates NVIDIA ASAP2 (Accelerated Switch and Packet Processing) technology, enabling full SDN data plane offload to the SmartNIC. This dramatically reduces CPU burden in software-defined data centers while supporting both cloud (VXLAN, GENEVE) and telecom (MPLS, GTP) encapsulations. Meanwhile, Zero-Touch RoCE eliminates legacy RDMA configuration pains, allowing RoCE traffic to run on standard Ethernet fabrics without priority flow control or explicit congestion notification. Hardware root-of-trust further protects the supply chain, ensuring that only authenticated firmware executes during boot. The CDAT variant focuses on providing these acceleration features without the IPsec crypto engine, making it a cost-effective choice for many enterprise workloads.
Typical Deployments
- Cloud and Enterprise Data Centers: Accelerate Open vSwitch (OVS) and SDN controllers; offload connection tracking for stateful firewalls.
- NFV and Telecom Infrastructures: Deploy virtualized packet gateways, GTP encapsulation and decapsulation, and MPLS acceleration.
- High-Performance Storage and HPC: RoCE-based NVMe over Fabrics, distributed storage (Ceph, Lustre) with low latency.
- Financial Services: Hardware offload for market data feeds, low-latency trading with flow mirroring and packet sampling.
- AI and Machine Learning Clusters: High-throughput data transfer between GPU servers with RoCE acceleration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCX623106AN-CDAT |
| Form Factor | PCIe Low Profile |
| Port Configuration | 2x 10/25GbE or 1x 50GbE (SFP28) |
| Host Interface | PCIe Gen4 x8 (compatible with PCIe Gen3 x8) |
| Maximum Throughput | 50Gb/s total bandwidth |
| Message Rate | 75 million packets per second (Mpps) |
| RoCE Support | Zero-Touch RoCE, RoCE Congestion Control |
| Security Offload | Hardware root-of-trust, secure firmware update (No IPsec inline) |
| SDN / Overlay Offload | VXLAN, GENEVE, NVGRE, MPLS, GTP; ASAP2 connection tracking and stateful firewall |
| Virtualization | SR-IOV (up to 256 VFs), VirtIO acceleration |
| Management | NC-SI, MCTP over SMBus/PCIe, PLDM for monitor/control and firmware update (DSP0248, DSP0267) |
| Remote Boot | PXE, iSCSI, UEFI (x86 and Arm) |
| Operating Temperature | 0°C to 55°C (typical), refer to user manual for exact derating |
Key Performance Facts
75 Mpps
Line rate message rate
50Gb/s
Total bandwidth
PCIe 4.0 x8
Host interface
ZTR RoCE
Zero-touch deployment
ASAP2
SDN and connection tracking offload
Non-Crypto
Cost-optimized design
Frequently Asked Questions
Q1: What is the difference between MCX623106AN-CDAT and crypto-enabled variants?
A: The CDAT is a non-crypto variant that does not include inline IPsec hardware acceleration. Crypto-enabled models (such as ADAB or ADAT) provide AES-XTS 256/512-bit encryption/decryption offload. Choose CDAT for cost-optimized deployments where IPsec offload is not required.
Q2: Does this card support 50GbE on a single port?
A: Yes, the dual-port adapter can be configured as one 50GbE port (using breakout cables) or two independent 25GbE or 10GbE ports.
Q3: Is Zero-Touch RoCE compatible with my existing switches?
A: ZTR works on standard lossy Ethernet networks without requiring PFC or ECN, making it far easier to deploy compared to traditional RoCE. Most modern switches support it.
Q4: Can I use this SmartNIC in a VMware ESXi environment with SR-IOV?
A: Yes, ConnectX-6 Lx supports SR-IOV on ESXi and is certified with leading hypervisors. VirtIO acceleration also benefits containerized VMs.
Q5: What is the typical lead time for MCX623106AN-CDAT?
A: Standard lead time is 2 to 4 weeks depending on quantity. Contact Starsurge for current stock availability.
Buyer Checklist - Before Ordering
- Confirm PCIe slot type: x8 physical (Gen3 or Gen4) with adequate airflow.
- Verify port speed requirements: 10/25GbE dual-port or 50GbE single-port mode.
- Confirm crypto requirement: CDAT is non-crypto; choose ADAB/ADAT for IPsec offload.
- Check bracket type: low-profile bracket standard, full-height bracket available upon request.
- Ensure OS and driver compatibility with ConnectX-6 Lx series.
- Contact Starsurge for volume pricing and lead time.
